All-In-One Connector cable for CTF-, MM-, MH- TFT Displays - 5m -
MM400 - VGA 7" TFT - PAL/NTSC - IR Remote - Audio [LED-Backlight] (without TS)
New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.
A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- rear camera input
[more]

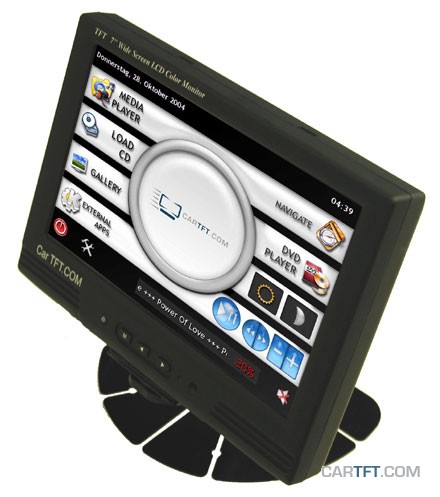

| Front |
|

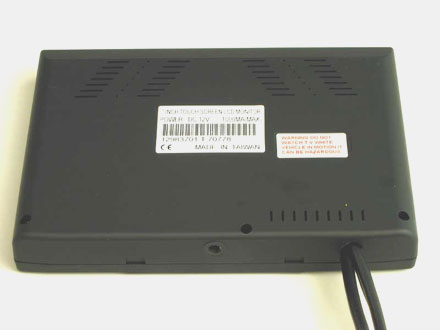

| Rear |
|

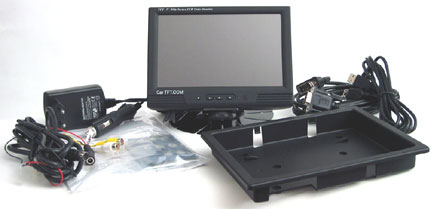

| Side |
|
| LCD Size | 7" |
| Aspect Ratio | 16:9 |
| VGA resolutions | 640x480-1920x1200 |
| Native resolution | 800x480 |
| Dot resolution | 2400x480 |
| Brightness | 400 |
| VGA Input | D-SUB 15 |
| Video Input | 3x PAL/NTSC (RCA) |
| Audio Input | 2x RCA |
| Touchscreen | |
| Case color | black |
| Power Input | 12-24VDC |
| Power Consumption | 9W |
| Case size | 178 x 130 x 27 mm |
| Visible area | 154 x 93 mm |
| Certificates | CE, E1 |
| Style | On-Dash |
| no | Adjustable backlight |
| yes | Auto Power-On |
| no | Picture In Picture |
| yes | IR Remote |
| yes | Headrest mount |
| yes | TS pencil |
| no | Earphone |
| no | Adjustable video aspect |
| no | Mirrorable video |
| yes | Reverse camera input |
