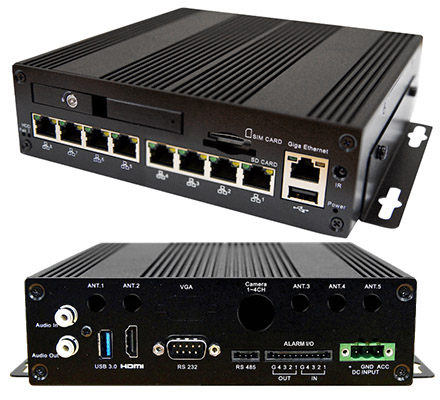

EverFocus eNVP-JNX-IV-V0008 (NVIDIA Jetson Xavier NX AI) [8x PoE f. IP Camera]

EverFocus eNVP-JNX-IV-V0008 (NVIDIA Jetson Xavier NX AI) [8x PoE f. IP Camera]
3D 360° View
  • NVIDIA Jetson Xavier !
  • 8x PoE Camera Support !
  • eIVP1570VE

  • Fanless AI Network video recorder platform
  • 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 processor
  • NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores
  • Onboard 8 GB 128-bit LPDDR4x @ 1600 MHz51.2GB/s
  • Supports 8 PoE ports
  • Supports one HDMI display output
  • Supports Ethernet x 9 ports (PoE x 8, GbE x 1)
  • Supports ONVIF 2.0, 2MP IP camera up to 16 channels
  • Supports AI functions
  • CE, FCC, E-Mark, EN50155, MIL-STD-810G





Share

1269.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model name eNVP-JNX-IV-V0008
Processor 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 processor
Main Memory Onboard 8 GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s
Format H.265 / H.264
Video Input IP camera x 16 (PoE port x8)
Video Output 1x HDMI 2.0 a/b maximum 3840 x 2160; VGA x 1 (optional)
Audio Input RCA x1
Audio Output RCA x1
Format H.265 / H.264
Resolution 4K @ 60fps x 2 | 4K @ 30fps x 4 | 1080p @ 30fps x 16
Internal HDD Bay 1 x 2.5" SATA (removable)
RAID NA
Ethernet GbE port x1, PoE ports (10/100 MbE, total 75W): SKU1 x 8 PoE
WiFi Optional
4G / 5G Optional
GPS / Gsensor Onboard G-Sensor, GPS (optional)
Alarm Input Alarm Input x 4
Alarm Output Alarm Output x 4
Front I/O Panel Power button x 1 IR receiver x 1 USB 2.0 x 1 GbE port x 1; PoE port x 8 Micro USB2.0 (Internal OTG) x 1 2.5“ SSD bay x 1 SIM card slot x 1 LED indicator x 2 (HDD, Fail)
Rear I/O Panel Audio input x 1, Audio output x 1 USB 3.0 x 1, RS-232 x 1, RS485 x 1 HDMI x 1 Alarm IO (4-input, 4-output) x 1 Power input x 1 Antenna port x 5
Expansion Slot Mini PCIe x 2 (full-size USB2.0 x 1, half-size USB2.0 x 1)
Power Supply DC 9 – 36V (with ignition pin)
Dimensions (W x D x H) 175.6 x 183.3 x 50.5mm / 6.9“ x 7.2“ x 2“ (without bracket)
Gross Weight 1.8kg / 4lb
Operating Temperature -4°F ~149°F (-20°C ~+65°C)
Storage Temperature -4°F ~185°F (-20°C ~+85°C)
Storage Humidity 95% @ 40 °C (non-condensing)
Vibration/Shock MIL-STD-810G
Certification CE, FCC, E-Mark, EN50155, MIL-STD-810G
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
