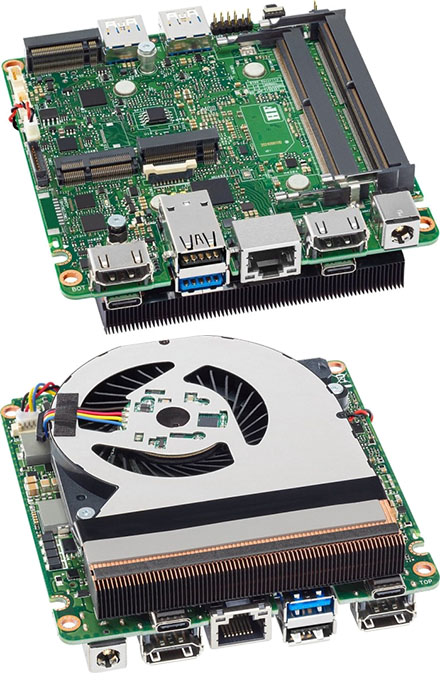

Intel NUC NUC11TNBv7 Pro Mainboard (i7-1185G7)

Intel NUC NUC11TNBv7 Pro Mainboard (i7-1185G7)
  • BNUC11TNBV70000

  • Typ / Chipset: Mainboard / System-on-Chip (SoC)
  • CPU: CPU: Intel Core i7-1185G7, 4C / 8T, 1.20-4.80GHz, 12MB + 5MB cache, 12-28W TDP, code name "Tiger Lake-UP3" (Willow Cove, 10nm SuperFin)
  • 2x DDR4 SO-DIMM, dual PC4-25600S/​DDR4-3200, max. 64GB (UDIMM)
  • 1x M.2 / M-Key (PCIe 4.0 x4 / SATA, 2280), 1x M.2 / B-Key (PCIe 3.0 x1 / SATA, 2242), 1x M.2 / E-Key ( Intel CNVi, 2230)
  • Graphics: Intel Iris Xe Graphics (iGPU), 96EU / 768SP, 1.35GHz, code name "Tiger Lake GT2" (Gen12 Xe)
  • Connections: 2x HDMI 2.0b (iGPU), 3x USB-A 3.1 (10Gb / s), 1x USB-A 2.0 (480Mb / s), 1x Thunderbolt 4, 1x Thunderbolt 3, 1x 2.5GBase-T (Intel I225 -LM), 1x hol [more]

    Share

798.00 EUR
incl. 19% VAT, plus shipping
In Stock (4 pcs)
Add to cart

  • Typ / Chipset: Mainboard / System-on-Chip (SoC)
  • CPU: CPU: Intel Core i7-1185G7, 4C / 8T, 1.20-4.80GHz, 12MB + 5MB cache, 12-28W TDP, code name "Tiger Lake-UP3" (Willow Cove, 10nm SuperFin)
  • 2x DDR4 SO-DIMM, dual PC4-25600S/​DDR4-3200, max. 64GB (UDIMM)
  • 1x M.2 / M-Key (PCIe 4.0 x4 / SATA, 2280), 1x M.2 / B-Key (PCIe 3.0 x1 / SATA, 2242), 1x M.2 / E-Key ( Intel CNVi, 2230)
  • Graphics: Intel Iris Xe Graphics (iGPU), 96EU / 768SP, 1.35GHz, code name "Tiger Lake GT2" (Gen12 Xe)
  • Connections: 2x HDMI 2.0b (iGPU), 3x USB-A 3.1 (10Gb / s), 1x USB-A 2.0 (480Mb / s), 1x Thunderbolt 4, 1x Thunderbolt 3, 1x 2.5GBase-T (Intel I225 -LM), 1x hollow socket (mains connection)
  • Internal connections: 2x USB 2.0 header (480Mb / s, 4x USB 2.0), 1x SATA 6Gb / s, 1x seriall:
  • Power connection: 1x DC-In (19V / 120W), 1x 15-pin SATA
  • Formfactor: UCFF (4" x 4")
  • Special features: Security lock (Kensington), vPro, TPM 2.0, 4x display support, suitable for continuous operation
    • PU)
