CTFMIOT-K70H (7" Android TabletPC/IOT-Terminal, Waterproof IP67, Ruggedized, 1.5Ghz Quad CPU/3GB RAM, GPS/WLAN/BT/3G/4G, Android 7)

CTFMIOT-K70H (7" Android TabletPC/IOT-Terminal, Waterproof IP67, Ruggedized, 1.5Ghz Quad CPU/3GB RAM, GPS/WLAN/BT/3G/4G, Android 7)
  • Android Tablet !
  • Water Resistant !
  • 600 nits !
  • Sunlighreadable !

Introducing the new 7” capacitive multi touch display water resistant media tablet from CarTFT. CTFMIOT-K70H is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFMIOT-K70H keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFMIOT-K70H allows users to experience high definition (HD) content on the device.

● Quad 1.5Ghz 64bit CPU, 3GB RAM, 32GB ROM !
● High performance media tablet with rugged design with IP67 rating
● Camera (5MP)
● Speakers for high qua
[more]

Share

429.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks

Add to cart

Introducing the new 7” capacitive multi touch display water resistant media tablet from CarTFT. CTFMIOT-K70H is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFMIOT-K70H keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFMIOT-K70H allows users to experience high definition (HD) content on the device.

● Quad 1.5Ghz 64bit CPU, 3GB RAM, 32GB ROM !
● High performance media tablet with rugged design with IP67 rating
● Camera (5MP)
● Speakers for high quality audio playback
● 7” sunligh-readable 6000nit capacitive multi touch screen
● True HD 1080P Video Playback & Output
● Android 7 support
● GPS/WLAN/BT/3G/4G !

Optional available extension modules :
● NFC (HF/support ISO14443A/B/ISO15693/Reader/Data transfer/CARD)
● UHF RFID (1.5M-2M, 902-928M, 865-868M)
● LF RFID (125k)
● Lara (433M, 8000m max., 1W)
● OBD-II (CAN2.0A/B, ISO/DIN11898, 1 channel, 400 frames/s)

If you have a project with serious size and are able to sign a NDA we can provide Androis-OS-system builder kit for this device which enables you to create your own Android OS image (eg. own boot logo, own preinstalled apps and settings, etc...) !

Dimension 226x117x8-39mm
Weight 700g
Protection Level Shake-Proof : 1-19Hz/1.0mm; 19-200Hz/1.0g
Drop-Proof : MIL-STD-810G/Method 516.6/Procedure IV
Water-Proof : Class 7 (IEC60529)
Dust-Proof : Class 6 (IEC60529)
Reliability : >50.000h MTBF
CPU ARM Cortex A53 Quad-Core 4x 1.5Ghz 64bit
OS Android 7 (5.1 on request)
Memory 3 GB
Storage 32 GB ROM EMCP
Memory Slot MicroSD (max. 128GB)
GPS Chipset Built-In
Color Display 7" TFT LCD with Multi Capacitive Touch Screen (Toughened glass, support glove touch/spray/active)
Panel Resolution & Brightness 1920x1200 FHD industrial
600nits Sunlight readable
Battery Type No built-in battery
Optional : External UPS 4000mAH unit
Speaker Yes
Sensors
Motion sensor, M-sensor, Acceleration sensor, G-sensor, Gyro sensor, Light sensor, Rotation vector sensor
Cameras 5.0 Megapixels (front side)
Wireless Interface WLAN 802.11a/b/g/n (2.4Ghz/5Ghz)
Bluetooth 2.1+EDR / 3.0+HS / 4.0 LE (A2DP+EDR)
GSM/EDGE/GPRS/WAP (B2/B3/B5/B8)
WCDMA [HSDPA+/HSUPA+] (B1/B2/B5/B8)
TDSCDMA (B34/B39)
TD-LTE (B38/B39/B40/B41)
FDD LTE (B1/B2/B3/B4/B5//B7/B20)
FM
I/O ports USB Type-C 24pin (Support OTG)
2x USB2.0 (Host)
3.5mm Headphone with Mic-in
Build-in Microphone
MicroSD Reader
Camera+SOS buttons
SIM card slot
SMA Female Antenna port (active)
Environment Operating temperature: -20° to 70°C
Storage temperature: -40° to 80°C
Relative humidity: 5% to 95%
Maximum operating altitude: 15,000 feet (4500 m)
Optional modules available (on request) - NFC (HF/support ISO14443A/B/ISO15693/Reader/Data transfer/CARD)
- UHF RFID (1.5M-2M, 902-928M, 865-868M)
- LF RFID (125k)
- Lara (433M, 8000m max., 1W)
- OBD-II (CAN2.0A/B, ISO/DIN11898, 1 channel, 400 frames/s)

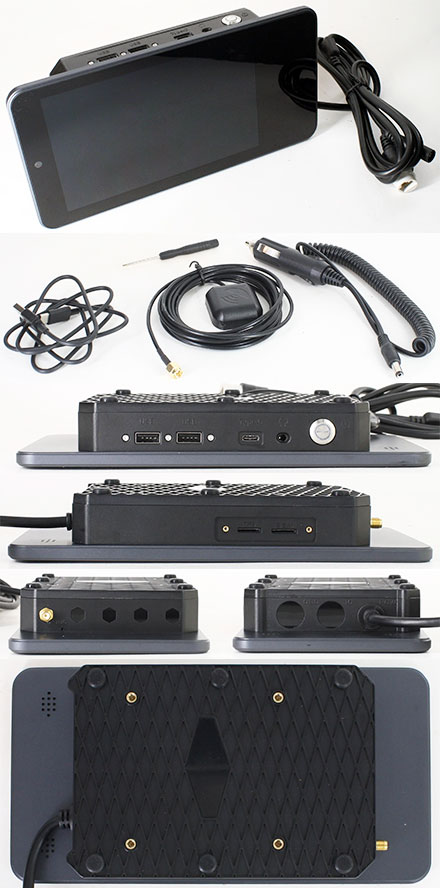

Scope of supply - CTFMIOT-7 Android PND
- USB cable
- External GPS antenna
- Cigarette lighter adapter
- Mini screwdriver
Data sheet Download (PDF)
